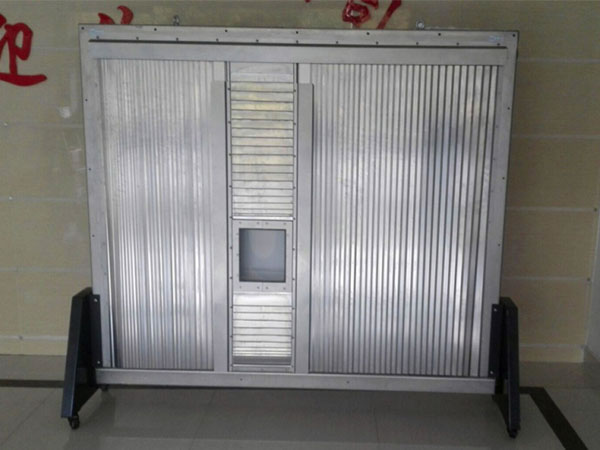

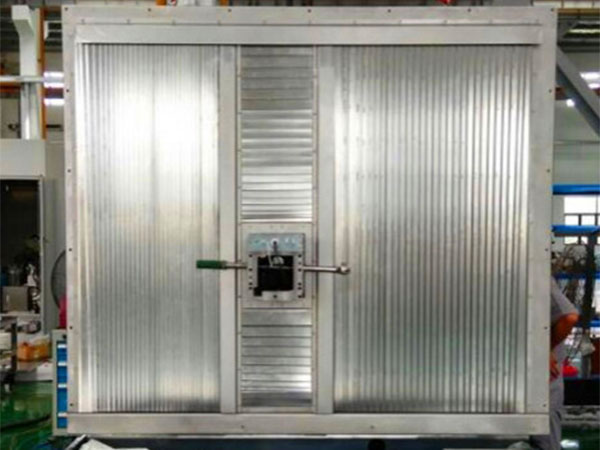

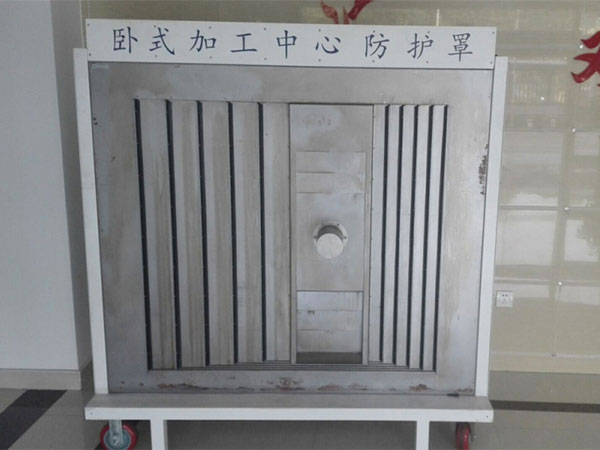

Backwall System for Machining Center
Multi-axis face shield
Integrate backwall guard
Multi-axis face shield assemblies have been developed for machining centers or any application needing simultaneous, dynamic protection for each axis of movement. Typical industrial applications are vertical (side or wall) or horizontal.
Depending upon your application, XY face shields can incorporate a number of different methods of protection for each axis: Stainless steel shade, Multiple roll up covers or protective sliding plates cover the two main axis, while a ram?wiper or bellows can be used for a third axis.
According to users' requirements, the multi-axis protective shield is set to protect each shaft. The stainless steel cover and multiple retractable armor pieces cover the 2 main shafts. Bellow cover is optional to protect the third shaft.
Features
1.Speeds of 200m/minute or more
2.Accelerations up to 1g or more
3.Designed with ease of installation and longevity in mind
4.Protect the machine center from metal shaving, coolant, dust, oil etc.
5.Mounting arrangement to suit the customer's needs
6.It has no internal metal parts which avoid metal parts, falling onto sideways may cause serious damage to machines
Our most popular Multi-axis face shield are available in pre-selected sizes and materials. The unidirectional plate connection provides ?uniform plate expansion in a low profie design. These covers have performed to two million cycles at up to 2G's to ensure that they meet your high speed and high cycle requirements.
Customization
Pls kindly note it's better if customer can supply us the guide section drawings with IGS or STP format. Then our professional engineer can design the bellow to customer, if not, pls let me know Machine cover figure. It is better to offer the drawings (or mark above figure) then Krius design exactly
Pls remark if you have special demand, or we will follow Krius regulation

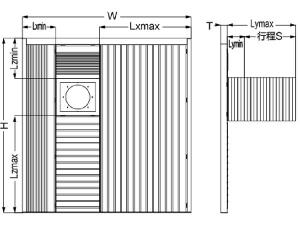

| Code | Des | Figure | Test result by Kirus | Remark |
| Lxmax | X axie max stretched out length | Machine travel range(Not null) | ||
| Lxmin | X axie mix compressed length | |||
| Lymax | Y axie max stretched out length | |||
| Lymin | Y axie mix comressed length | |||
| Lzmax | Z axie max stretched out length | |||
| Lzmin | Z axie mix comressed length | |||
| S | Travel distance for x/y/z | Machine max distance(Optional) | ||
| W | Transom width | Not null | ||
| H | Upright height | Not null | ||
| T | Transom/upright thickness | >=70mm (Not null) | ||
| Accessories need | Optional | |||
| material of cover | Material and surface treatment (Optional) | |||
| Guide rail item No. | (Not null/attched) | |||
| Running speeding | Not null | |||
| Assemble way | Vertical/horizontal/others(Optional) | |||
| Equipment item No. | Optional | |||
| Enviorment | Scarp or not (Optional) |
