Heavy Load Multifunctional Plastic Cable Chain

Features
1. The cross bar can be opened either inside or outside
2. Flammability rating: UL V2
3. Wear-resistant roller is set for acceleration
4. Aesthetic appearance
5. Resistant to abrasion and corrosion
6. Applicable in occasions with high speed or high acceleration
7. Can be assembled into S-shaped cable chain
8. Depend on the first-class raw material, good performance of machine and strict quality control, our product have excellent properties.

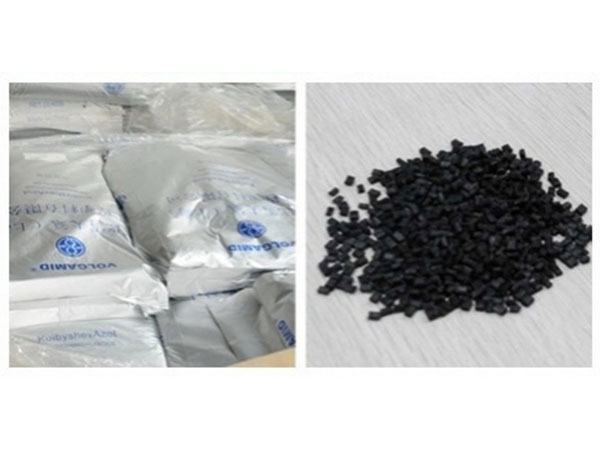

  • PA66 engineering plastic

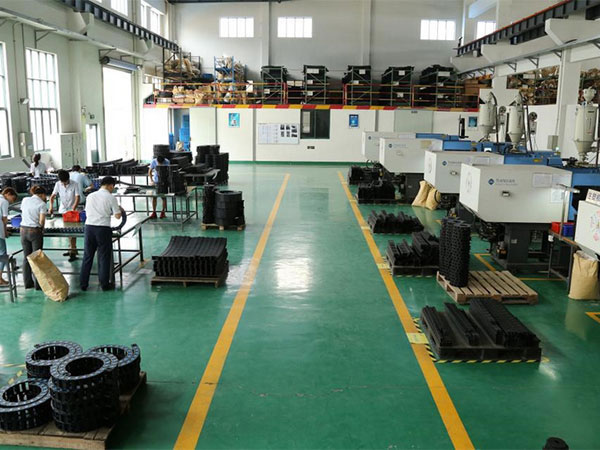

  • Assembly and injection molding plant

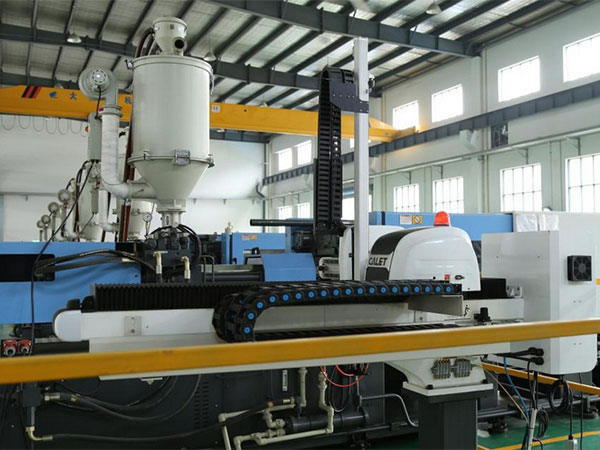

  • Fully automatic testing equipment for cable chain

Technical parameter

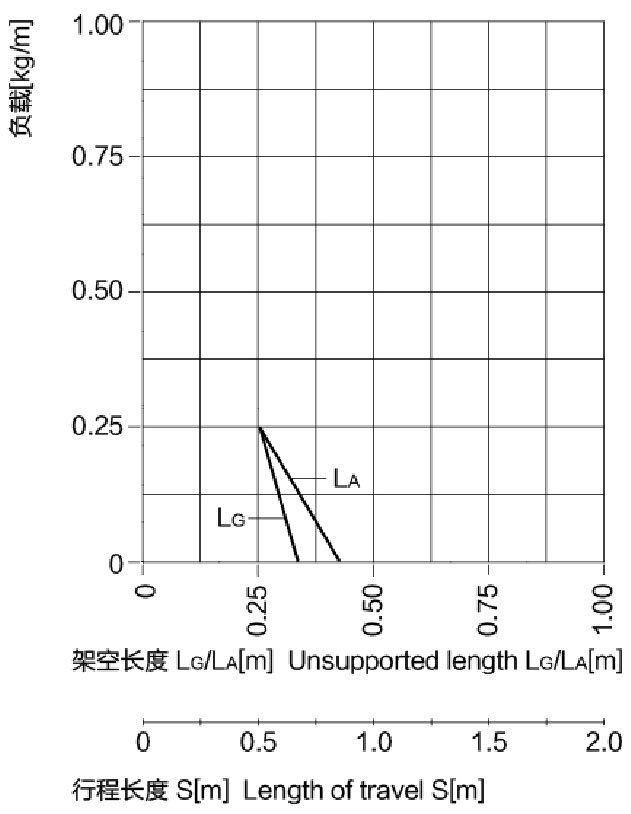

Speed /acceleration LG: Max.25m/s Max.205m/s2
Speed /acceleration LA: Max.5m/s Max.8m/s2
Gliding speed/acceleration: Max.5m/s Max.12m/s2
Material-permitted temperature: igumid G/-40℃ to +125℃
Flammability Class,igumd G: VDE0304 IIC UL94 V2

The selection of ZLQ cable chain depends on the load arrangement. Generally, the inner height and inner width of cable chain should be separately 1.5 times of the max height and max width of load arrangement.

Type (Hi) inner height
(mm in.)
(Wi) inner width
(mm in.)
ø cable max ø
(mm in.)
(H) outer height
(mm in.)
(W) outer width
(mm in.)
(R) bending radius
(mm in.)
(P) pitch
(mm in.)
ZLQ55 55 (2.17) 75-600 (2.95-23.62) ø50 ( 1.97 ) 84 (3.31) 123-648 (4.84-25.51) 130-400 (5.12-15.75) 91 (3.58)
ZHQ55 55 (2.17) 75-600 (2.95-23.62) ø50 ( 1.97 ) 99 (3.90) 173-698 (6.81-27.48) 130-400 (5.12-15.75) 91 (3.58)
ZLQ62 62 (2.44) 75-600 (2.95-23.62) ø56 (2.20) 91 (3.58) 119-644 (4.69-25.35) 150-1000(5.91-39.37) 98 (3.86)
ZLF62 62 (2.44) 150-200 (5.91-7.87) ø56 (2.20) 91 (3.58) 194-244 (7.64-9.60) 250-1000(9.84-39.37) 98 (3.86)
ZHQ62 62 (2.44) 75-600 (2.95-23.62) ø56 (2.20) 106 (4.17) 169-694 (6.65-27.32) 150-1000(5.91-39.37) 98 (3.86)
ZLQ80 80 (3.15) 75-600 (2.95-23.62) ø72 (2.83) 109 (4.29) 123-648 (4.84-25.51) 150-1000(5.91-39.37) 115 (4.53)
ZLF80 80 (3.15) 150 (5.91) ø72 (2.83) 109 (4.29) 198 (7.80) 300-1000(19.69-39.37) 115 (4.53)
ZHQ80 80 (3.15) 75-600 (2.95-23.62) ø72 (2.83) 124 (4.88) 173-698 (6.81-27.48) 150-1000(5.91-39.37) 115 (4.53)

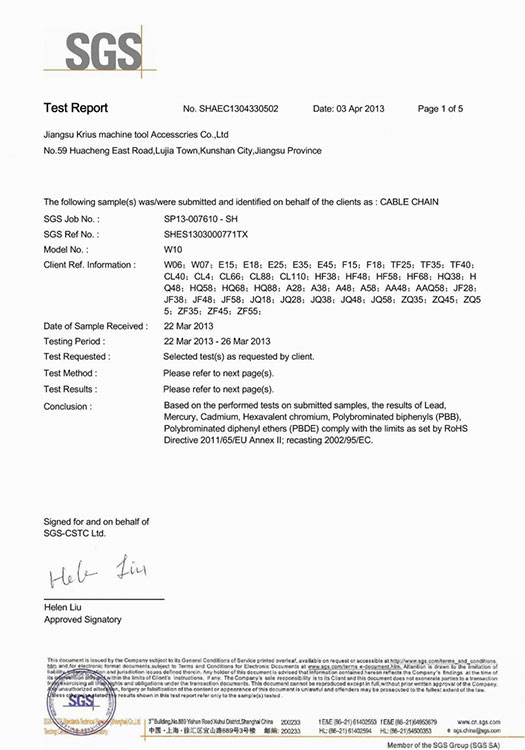

Certification
