Plastic Cable Chain- Mini Series

Plastic Cable Chain / Mini Plastic Cable Chain / Cable Drag Chain

Description

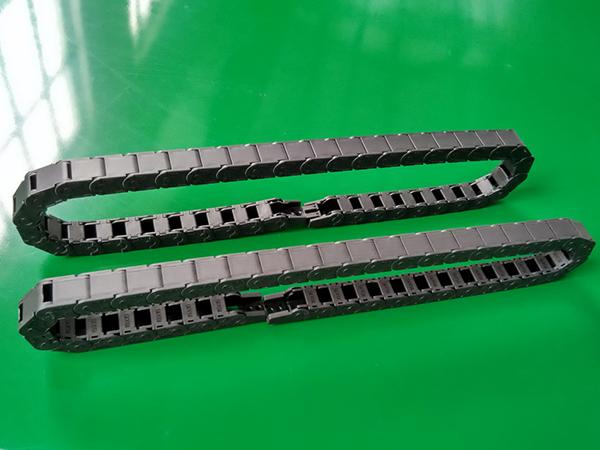

The mini-series cable chain features an integrated structure and is suitable for highly dynamic projects. Krius' cable drag chains are available with a variety of accessories and options, including chains you can open, or attach to each other to increase the length.

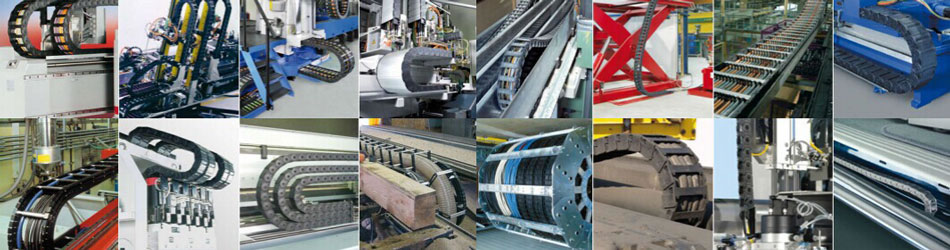

Applications
The mini plastic cable chains are primarily used for protecting cables in construction machinery, material handling, furniture industry, and packaging machinery textile industries.

Features and Benefits
1. Small pitch, low noise
2. Flammability class: UL V2

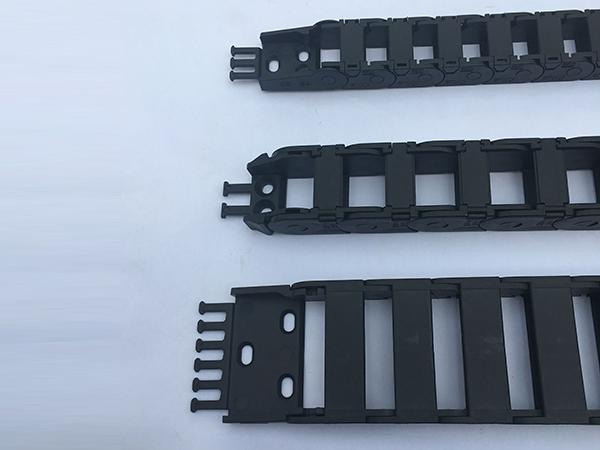

3. Integrated bracket with an optional tie-wrap clamp
4. Smooth outward appearance design, corrosion resistant, abrasion resistant, and gliding applications

Depending on the quality of raw materials, our machines feature an excellent performance, are manufactured under strict quality control, and have a number of excellent properties.

  • Raw material

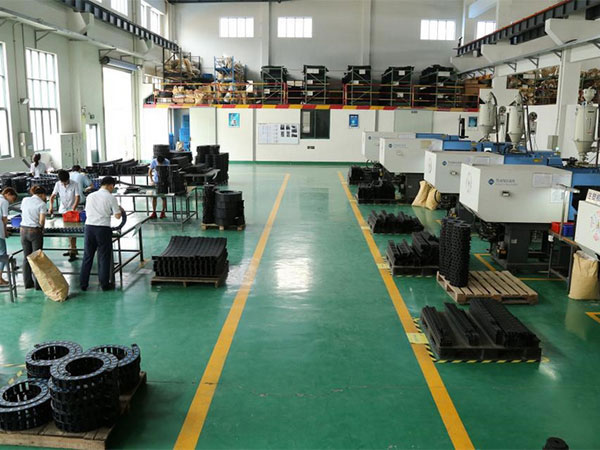

  • Assembly and injection molding
  • Fully automatic testing equipment for cable chain

Customization
Your mini cable chain selection should depend on the load arrangement. Typically, the inner height and inner width of the cable chain should be 1.5 times EACH of the maximum height and maximum width of the load arrangement.

Technical parameter
Type (Hi) inner height
(mm in.)
(Wi) inner width
(mm in.)
ø cable max ø
(mm in.)
(H) outer height
(mm in.)
(W) outer width
(mm in.)
(R) bending radius
(mm in.)
(P) pitch
(mm in.)
EN15 15 (0.59) 15.2-50.2 (0.6-1.98) ø12 (0.47) 19.5 (0.77) 24.8-59.8 (0.98-2.35) 23-48 (0.91-1.90) 25 (0.98)
EN18 18 (0.71) 18.2-50.2 (0.72-1.98) ø15 (0. 59 ) 23 (0.91) 29.2-61.2 (1.15-2.41) 28-48 (1.10-1.90) 30 (1.18)
FN15-II 15 (0.59) 15.2-50.2 (0.6-1.98) ø12 (0.47) 19.5 (0.77) 26.2-61.2 (1.03-2.41) 25-48 (0.98-1.90) 25 (0.98)
FN18-II 18 (0.71) 18.2-50.2 (0.72-1.98) ø15 (0.5 9 ) 23 (0.91) 30.2-62.2 (1.19-2.46) 28-180 (1.10-7.09) 30 (1.18)

Details

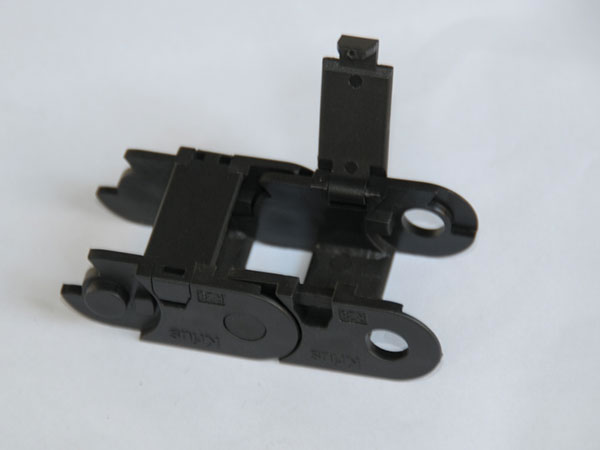

1. Integrated design: the lids can be opened along the inner radius (FN15/FN18 series)
2. Small pitch, quiet operation

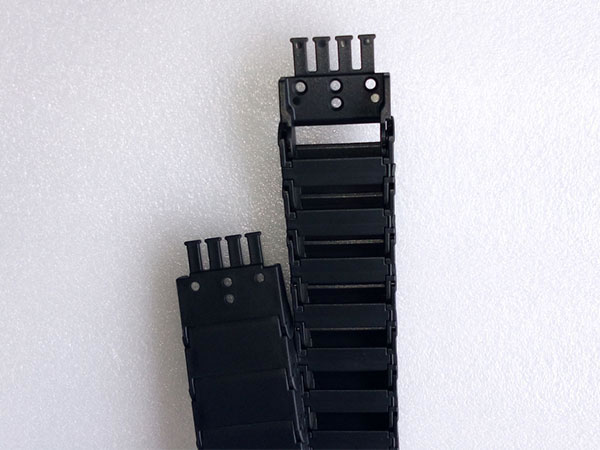

3. Integrated strain relief fixed bracket, great for fixing and isolating cables.
